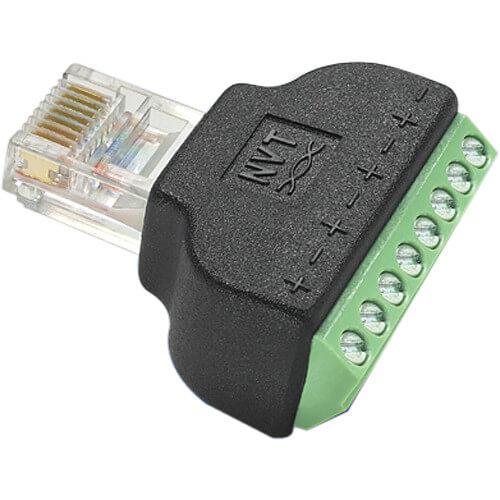

The NV-RJ45A RJ45 to Screw Terminal adaptor is wired in accordance with the EIA/TIA 568B wiring standard for structured cabling. This is the same standard that NVT Phybridge uses in all our products. Please refer to the wiring/pinout diagrams for details as to how UTP conductors are landed on the screw terminal side and marked according to each input channel.
NVT Phybridge NV-RJ45A Features:
