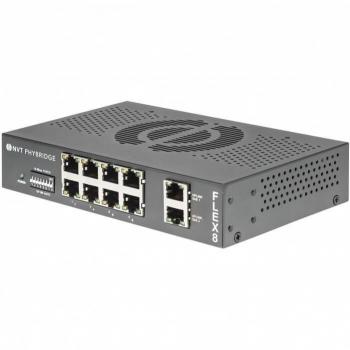

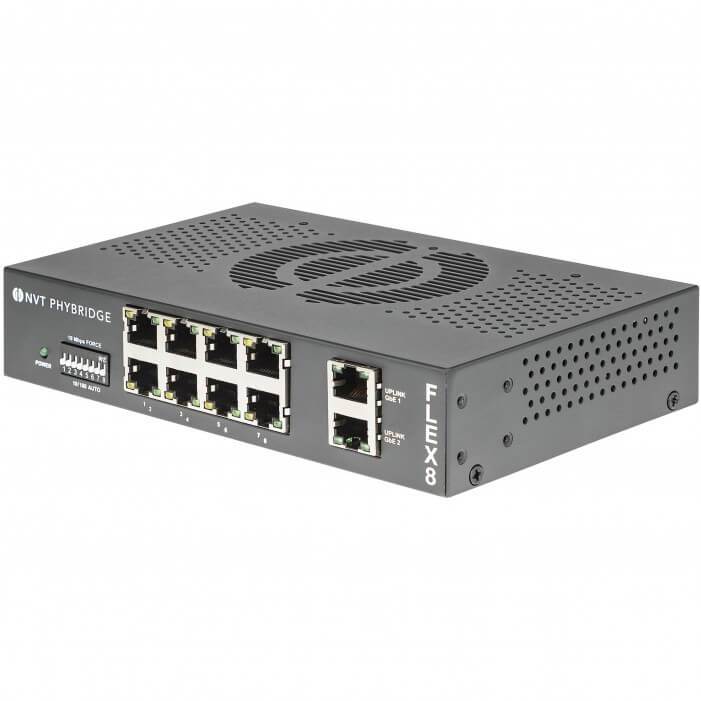

The NV-FLX-08-RL from NVT Phybridge is a plug-and-play long reach PoE Switch is a versatile, high-powered, enterprise-class solution with 8 downlink ports delivering fast ethernet (100Mbps full duplex, symmetrical) and PoE++ (50Wper port) over multi-pair UTP for up to 2,000ft (610m) – that’s 6Xs the distance of typical PoE switches. The NV-FLX-08-RL switch has two, 1Gb uplink ports for daisy chain deployments and comes standard with a 190W external power supply and a universal mounting kit for wall or rack mounting.

NVT Phybridge NV-FLX-08-RL Features:

• 8 port plug-and-play unmanaged switch delivering fast Ethernet and PoE++ (up to 50W) over multi-pair UTP with up to 2,000ft (610m) reach
• 8 x 10/100Mbps (symmetrical, full duplex) downlink ports supporting up to 50W of power per port
• 2 x 1Gb uplink ports
• Can support 1-, 2- or 4-pair UTP cabling infrastructure
• Can operate in standard mode (without a FLEX Adapter) and long reach PoE mode for extended reach to 2,000ft (610m)
• Auto detects data rate for maximum bandwidth and transmission distance utilization
• Speed toggle to force 10Mbps speed when necessary to establish a link
• LED indicators for operating status and cable diagnostics
• Supports Multicast, Unicast, and Broadcast
• EN 50121-4 Standard for Railway/Subway environments
• Operating temperature from -10°C to +65°C
• Designed and manufactured in North America
• Power consumption: 6W
• IoTG certified
