NVT Phybridge NV-FLX-04-XKIT 4-Port Extender Kit

NVT Phybridge NV-FLX-04-XKIT 4-Port Extender Kit
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-FLX-04-XKIT 4-Port Extender Kit

NVT Phybridge NV-FLX-04-XKIT 4-Port Extender Kit

SKU: NV-FLX-04-XKIT
Call (877)300-7557 for stock
Rating:
$620.95 /ea
0
$0.00
0
$0.00
0

The NV-FLX-04-XKIT from NVT Phybridge is an IEEE-compliant and negotiates power requirements with up to 4 IP devices, delivers 30W of power over 2-pairs, and can be locally powered.

NVT Phybridge NV-FLX-04-XKIT Features:

  • 10/100BASE-T(X) Ethernet with PoE++ (up to 50W)
  • 10/100Mbps, full duplex data rate
  • Power Injection or Pass-through PoE++ over standard UTP or STP cable
  • Up to 2,000ft (610m) at 100Mbps over 4-pair, or at 10Mbps over 1- (needs local power) or 2-pair
  • Operating temperature from -40°C to +70°C
  • Supports Multicast, Unicast, and Broadcast
  • Auto-detect data rate for maximum bandwidth and transmission distance utilization
  • Compliant with all major IP and IEEE standards for RFC network protocols such as UDP and TCP
  • EN 50121-4 Standard for Railway/Subway environments
  • LED indicators for operating status
  • Designed and manufactured in North America
  • Power consumption: 1.5W

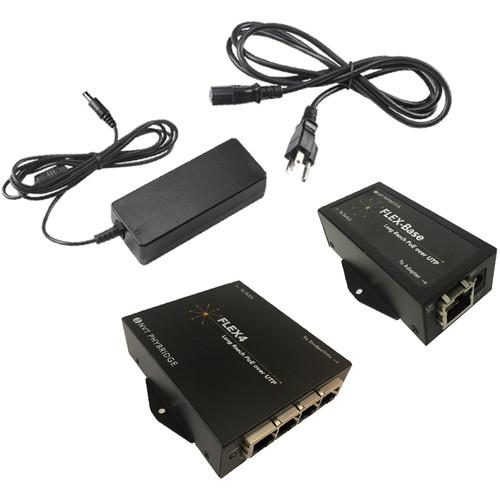

  • 1 x FLEX-Base unit
  • 1 x FLEX4 adapter
  • 1 x 110W, 55V power supply

Following are the Attached files for this product:

NVT Phybridge NV-FLX-04-XKIT 4-Port Extender Kit Brochure
