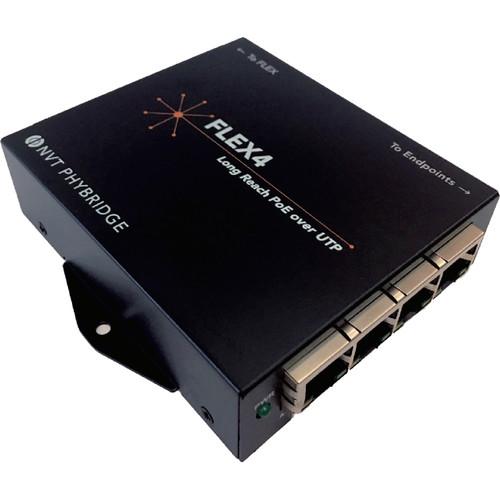

The NV-FLX-04 from NVT Phybridge is an IEEE-compliant and negotiates power requirements with up to 4 IP devices, delivers 30W of power over 2-pairs, and can be locally powered.

NVT Phybridge NV-FLX-04 Features:

• 10/100BASE-T(X) Ethernet with PoE++ (up to 50W)
• 10/100Mbps, full duplex data rate
• Power Injection or Pass-through PoE++ over standard UTP or STP cable
• Up to 2,000ft (610m) at 100Mbps over 4-pair, or at 10Mbps over 1- (needs local power) or 2-pair
• Operating temperature from -40°C to +70°C
• Supports Multicast, Unicast, and Broadcast
• Auto-detect data rate for maximum bandwidth and transmission distance utilization
• Compliant with all major IP and IEEE standards for RFC network protocols such as UDP and TCP
• EN 50121-4 Standard for Railway/Subway environments
• LED indicators for operating status
• Designed and manufactured in North America
• Power consumption: 1.5W
