NVT Phybridge NV-EC1701U-KIT3 Triple Entry Station Eo2 Transmission System

NVT Phybridge NV-EC1701U-KIT3 Triple Entry Station Eo2 Transmission System
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-EC1701U-KIT3 Triple Entry Station Eo2 Transmission System

NVT Phybridge NV-EC1701U-KIT3 Triple Entry Station Eo2 Transmission System

SKU: NV-EC1701U-KIT3
Call (877)300-7557 for stock
Rating:
$1,217.95 /ea
0
$0.00
0
$0.00
0

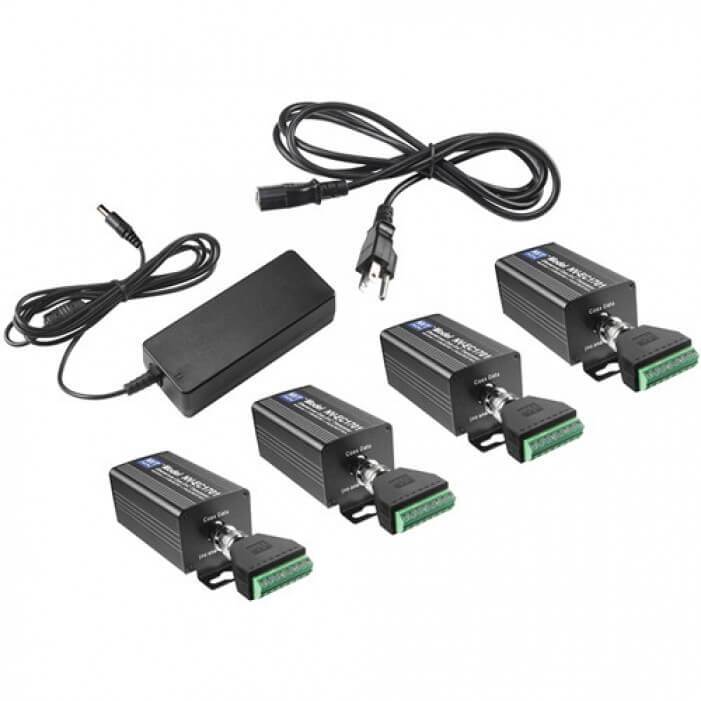

The NV-EC1701U-KIT3 from NVT Phybridge is a triple entry station Eo2 transmission system includes four NV-EC1701U Transceivers, one NV-PS56-60W Power Supply with an IEC line cord and four NV-PC4PR Patch-Cords.

The NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE from NVT Phybridge is a compact media converter that allows 10/100Base-T Ethernet and PoE or PoE+ power to be transmitted using a 18/2 or similar cable. Up to 48 or 56VDC class 2 power is delivered to a transceiver, which distributes it to multiple remote transceivers and their PoE or PoE+ devices.

This transceiver is simple to use, with no IP or Mac addressing required. The status LEDs indicate power and link connectivity/activity for RJ45 and 2-wire ports. The NV-EC1701U Eo2 transceiver transmits high-bandwidth encrypted Ethernet signals over conventional 2-wire cables.

The NV-EC1701U transceiver provides transparent, end-to-end 10Base-T or 100Base-T connectivity with auto detection and auto-crossover, allowing IP cameras or other devices to be installed at one end, while the data is transparently delivered to the other end.

Wire distances up to 1000' is supported, although local power (available separately) may be required for extended distances. The NV-EC1701U supports TCP/IP, UDP, HTTP, Multi-cast, and other standard protocols, which allows for the transmission of other network traffic besides streaming video.

The NVT Phybridge NV-PS56-60W Power Supply delivers 56 VDC and 60W of power to the NV-EC1701U and NV-EC1701 Ethernet over Coax (EoC) transceivers. A molded P1J 5.5mm barrel connector at the end of a 6' cord provides Class 2 (SELV) regulated output.

The 3' (0.91 m) 4-Pair RJ45 Patch Cord (Gray) from NVT Phybridge features two RJ45 plugs and is designed for use with NV-EC1701 Transceivers.

NVT Phybridge NV-EC1701U-KIT3 Features:

  • 100 BaseT transmission; Network speeds up to 93 Mbps; Up to 1,000ft (305m)
  • One NV-EC1701U transceiver at the network-end can support multiple remote transceivers/IP cameras
  • 56 VDC is distributed over the coax to all connected equipment
  • Powers PoE, PoE+, or High Power PoE cameras (or other PoE devices), up to 50 watts
  • Easy configuration, no PC required
  • Transparently supports all networking protocols (UDP, TCP/IP, HTTP, Multicast*, etc.)
  • 128-bit AES encrypted transmission
  • Built-in transient protection; Industrial temperature range
