NVT Phybridge NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE Power

NVT Phybridge NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE Power
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE Power

NVT Phybridge NV-EC1701U Ethernet Over 2-Wire Transceiver with PoE Power

SKU: NV-EC1701U
Call (877)300-7557 for stock
Rating:
$284.95 /ea
0
$0.00
0
$0.00
0

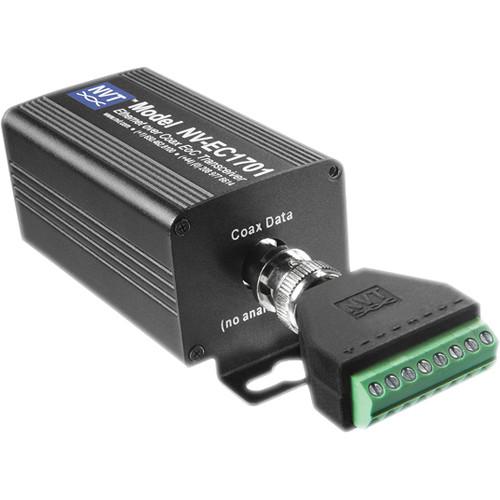

The NVT Phybridge Model NV-EC1701U Ethernet over 2-wire Transceiver is a compact media converter that allows 10/100 BaseT Ethernet and PoE+ power to be transmitted using ordinary 2-wire cable. These devices are often used in legacy installations where existing cable is re-deployed as part of an upgrade to IP cameras. 55 VDC class 2 power is delivered to one transceiver, which distributes it to multiple remote transmitters, and their PoE, PoE+, or High Power PoE cameras.

These transceivers are extremely simple to use, with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/activity for each port. They are backed by NVT Phybridge Phybridge’s award winning customer support and limited lifetime warranty.

NVT Phybridge NV-EC1701U Features:

  • 100 BaseT transmission; Network speeds up to 93 Mbps; Up to 1,000ft (305m)
  • 55 VDC is distributed over the coax to all connected equipment
  • One NVT Phyrbidge Eo2™ transceiver at the network-end can support multiple remote Eo2™ transceivers and connected devices
  • Up to four Eo2™ transceivers can be rack mounted on an NV-RMEC16U Eo2™ Rack Mount Tray Kit, connecting up to 16 entry stations or other devices
  • Transparently supports all networking protocols (UDP, TCP/IP, HTTP, Multicast*, etc.)
  • 128-bit AES encrypted transmission
  • Available in 1-4 device Eo2™ System Kits
