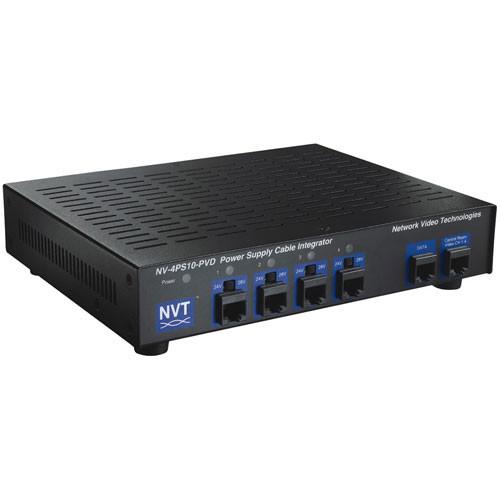

The NV-4PS10-PVD from NVT Phyrbidge is a Power Supply Cable Integrator Hub that combines a 1 Amp/channel power supply with pass through video and telemetry data, for up to 4 cameras and all over UTP wire. The NV-4PS10-PVD is Designed for installation in the wiring/IDF telecom closet, or at the Control/MDF room, the NV-4PS10-PVD consolidates connectivity vial standard 4-pair RJ45 EIA/TIA 568B compliant premises wiring and pinouts. The NV-4PS10-PVD from NVT Phyrbidge is a PVD product used for making the camera, Power, Video and Data connections via an RJ45 connector and a single 4-pair cable. Control/MDF room connections are achieved with a single 4-pair RJ45 cable for each group of four cameras. P/T/Z telemetry data, if required, pass through the NV-4PS10-PVD's data path and is connected to the controller via a second 4-pair RJ45 cable.

NVT Phybridge NV-4PS10-PVD Features:

• Provides Class 2 SELV camera power and pass-through video and telemetry data connectivity for up to 4 cameras, each via a single RJ45 4-pair UTP cable
• Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
• Independently selectable 24 or 28VAC with 1 Amp max per channel
• Automatic-reset fault protection; transient protection
• Individually floating outputs ensure total ground-loop immunity
• Diagnostic LEDs show load/no load, miswires, and overload conditions
• Use with the NV-216A-PV or NV-218A-PVD transceivers or the NV-226J-PV transmitter at the camera
• Power cameras via UTP over significant distances (see Power Distance Calculator)
• 1.75â high x 7.25â deep x 9.25â wide, wall or desk mount
