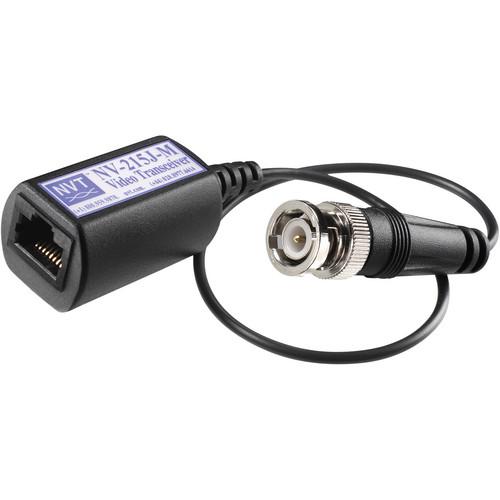

NVT Phybridge NV-215J-M 1 Channel Passive Video Transceiver RJ45

NVT Phybridge NV-215J-M 1 Channel Passive Video Transceiver RJ45
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-215J-M 1 Channel Passive Video Transceiver RJ45

NVT Phybridge NV-215J-M 1 Channel Passive Video Transceiver RJ45

SKU: NV-215J-M
Call (877)300-7557 for stock
Rating:
$36.95 /ea
0
$0.00
0
$0.00
0

The NV-215J-M from NVT Phybridge is a 1 channel passive video transceiver RJ45. The Video Transceiver is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported. The passive NV-215J-M has a 9" mini-coax pigtail lead which allows in-camera enclosure mounting in most dome cameras and a RJ45 for connection to UTP wire. It is capable of delivering a fully equalized signal to the DVR when used with any Active NVT Phybridge Receiver, yet is compatible with all of NVT Phybridge's passive products for applications under 750ft (225m). The NV-215J-M Video Transceiver also incorporates improved transient protection that eliminates the need for a ground screw. The unparalleled interference rejection and low emissions of the NV-215J-M allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.

NVT Phybridge NV-215J-M Features:

  • Full-motion CCTV video at distances up to 750ft (225m) when used with any Passive NVT Phybridge Transceiver or hub
  • Up to 1,500 feet (460m) shall be supported by any NVT Phybridge StubEQ Hub
  • Up to 3,000 feet (1,000m) with a DigitalEQ Hub or NVT Phybridge Active Receiver
  • Frequency response DC to 10MHz (see Resolution Distance Chart)
  • Mini-coax pigtail supports in-camera mounting in most dome cameras
  • RJ45 UTP terminal connection
  • No power required
  • Exceptional interference rejection
  • Built-in transient protection
  • Supports "up-the-coax" type control signal up to 750ft (225m)

Following are the Attached files for this product:

NVT Phybridge NV-215J-M 1 Channel Passive Video Transceiver RJ45 Brochure
