NVT Phybridge NV-214A-M 1 Channel Passive Video Transceiver

NVT Phybridge NV-214A-M 1 Channel Passive Video Transceiver
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-214A-M 1 Channel Passive Video Transceiver

NVT Phybridge NV-214A-M 1 Channel Passive Video Transceiver

SKU: NV-214A-M
Rating:
Quantity Price Stock
Please contact us for product lead time.
Please contact us for product lead time.
$36.95     /ea
Please contact us for product lead time.
0
$0.00
0
$0.00
0
NV-214A-M

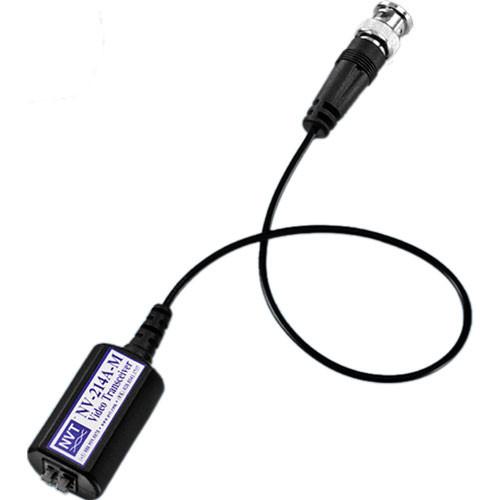

The NV-214A-M from NVT Phybridge is a 1 channel passive video transceiver. The Video Transceiver is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported. This product is an improvement over NVT Phybridge's popular NV-213A video transceiver. The passive NV-214A-M has a 9" mini-coax pigtail lead which allows in-camera enclosure mounting in most dome cameras and a greater number of mounting options in general at both ends of the system. It is capable of delivering a fully equalized signal to the DVR when used with any Active NVT Phybridge Receiver, yet is compatible with all of NVT Phybridge's passive products for applications under 750ft (225m). The NV-214A-M Video Transceiver also incorporates improved transient protection that eliminates the need for a ground screw. The unparalleled interference rejection and low emissions of the NV-214A-M allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.

NVT Phybridge NV-214A-M Features:

  • Full-motion CCTV video at distances up to 750ft (225m) when used with any passive NVT Phybridge transceiver or hub
  • Up to 3,000 feet (1,000 m) with a DigitalEQTM Hub or active receiver
  • Up to 1,500 feet (460m) shall be supported by any NVT Phybridge StubEQ Hub
  • Mini-coax pigtail supports in-camera mounting in most dome cameras
  • Reliable screwless UTP terminal connection
  • No power required
  • Exceptional interference rejection
  • Built-in transient protection
  • Supports "up-the-coax" type control signal up to 750ft (225m)
