NVT Phybridge NV-16PS13-PVD Power Supply Passive Video Receiver Hub

NVT Phybridge NV-16PS13-PVD Power Supply Passive Video Receiver Hub
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-16PS13-PVD Power Supply Passive Video Receiver Hub

NVT Phybridge NV-16PS13-PVD Power Supply Passive Video Receiver Hub

SKU: NV-16PS13-PVD
Rating:
Quantity Price Stock
Please contact us for product lead time.
Please contact us for product lead time.
$1,803.95     /ea
Please contact us for product lead time.
0
$0.00
0
$0.00
0
NV-16PS13-PVD

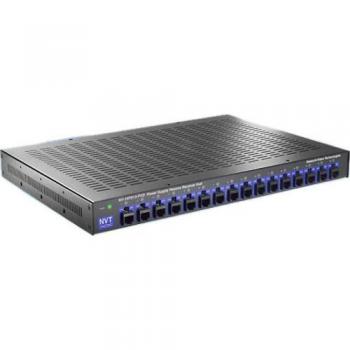

The NV-16PS13-PVD from NVT Phybridge is a Power Supply Passive Receiver Hub that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. The NV-16PS13-PVD from NVT Phybridge is Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room and has independently selectable 24VAC-OFF-28VAC outputs that support at-distance camera loads up to 1 Amp per channel. The NV-16PS13-PVD also uses cable runs under 750ft (225m). It also includes Per-channel diagnostic LEDs that display load/no-load, miswires, or fault conditions at a glance. Automatic-reset fault protection, transient protection, and ground loop free individually floating outputs.

NVT Phybridge NV-16PS13-PVD Features:

  • Provides Class 2 SELV camera power while receiving video transmission and delivering P/T/Z telemetry all over a single 4-pair Cat5e cable
  • Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
  • Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel
  • Automatic-reset fault protection; transient protection
  • Individually floating outputs ensure total ground-loop immunity
  • Diagnostic LEDs show load/no load, miswires, and overload conditions
  • Use with the NV-216A-PV, NV-218A-PVD, or NV-226J-PV transceiver at the camera
  • Power cameras via UTP over significant distances
  • 1U high; 12" deep; wall, desk, or rack-mountable, 2ft (60cm) BNC Cables included
