Algo 2503 Connector Kit for BCM 450 Inputs

Algo 2503 Connector Kit for BCM 450 Inputs
Images for general purposes only. Actual may be different than depicted.
Algo 2503 Connector Kit for BCM 450 Inputs

Algo 2503 Connector Kit for BCM 450 Inputs

SKU: 2503
Call (877)300-7557 for stock
Rating:
$32.95 /ea
0
$0.00
0
$0.00
0

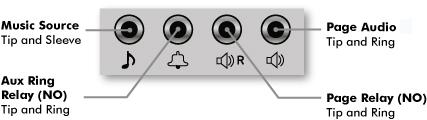

Algo 2503 Connector Kit for BCM 450 Inputs Features:

Auxiliary Ring Relay

Auxiliary ring dry contact closure output (normally open) provided for night bell or auxiliary ringing purposes. Contacts are provided between tip and ring of a 3.5mm (1/8") stereo jack. Contacts rated 50 mA 30V non-inductive and non-capacitive loads.

Page Relay
Page dry contact closure output (normally open) provided to mute background music during paging through an external amplifier. Contacts are provided between tip and ring of a 3.5mm (1/8") stereo jack. Contacts rated 50 mA 30V noninductive and non-capacitive loads.

Page Audio
Page audio output typical -12 dBm maximum 0dBm into 600 Ohm load. Output is transformer isolated and provided between tip and ring of a 3.5mm (1/8") stereo jack.

Music Source
Music source audio input. Input impedance is 3.3 kOhms. Nominal input level is 0.25 Vrms (-10 dBu). Maximum non clipping input input level is 1 Vrms. Mono input should be provided between tip and sleeve of the 3.5mm (1/8") stereo jack.
